uVera TechnologyAn Intelligent Ceiling-Mounted X-ray with integrated AI

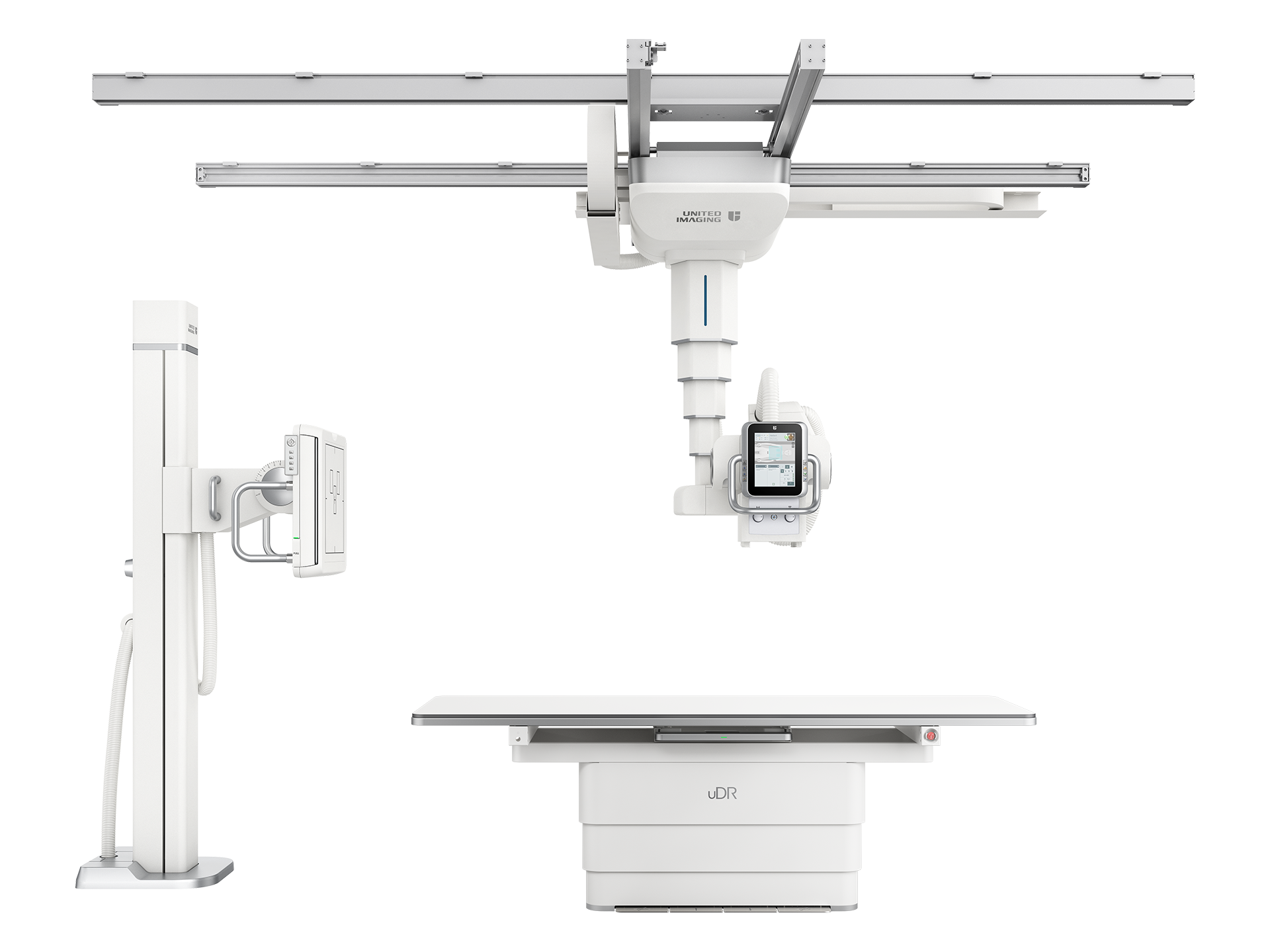

uDR Aurora CX
uDR® Aurora CX is United Imaging's AI-powered, ceiling-mounted X-ray system built to redefine efficiency and confidence in radiography. Equipped with the uAI® Vision Camera*, it creates a precise 3D model of the patient, enabling intelligent, automated adjustments to positioning and exposure parameters for a seamless workflow. With AI quality assurance technology embedded throughout the entire imaging process, it delivers real-time and retrospective analysis to eliminate repeat exposures and unnecessary patient radiation dose.
AI for Efficiency, AI for Confidence
-
Detector type : Wireless Flat Panel Detector
Scintillator: Cesium Iodide (CSI)
Pixel Size: 100μm
Detector Size: 17"X17"/14"X17"
-
Tube type: Rotating Anode X-ray Tube
Anode target material: Rhenium-Tungsten faced Molybdenum
Focal spot size: 0.6mm / 1.2mm
Anode target angle: 12°
-
Max. Output Power: 65kW / 80kW
Range of kV: 40kV-150kV
Range of mA: 10~800mA (65kW)
10~1000mA (80kW)
