AI-Enabled Clinical WorkflowAll-in-one Free Exposure
uDR Arria

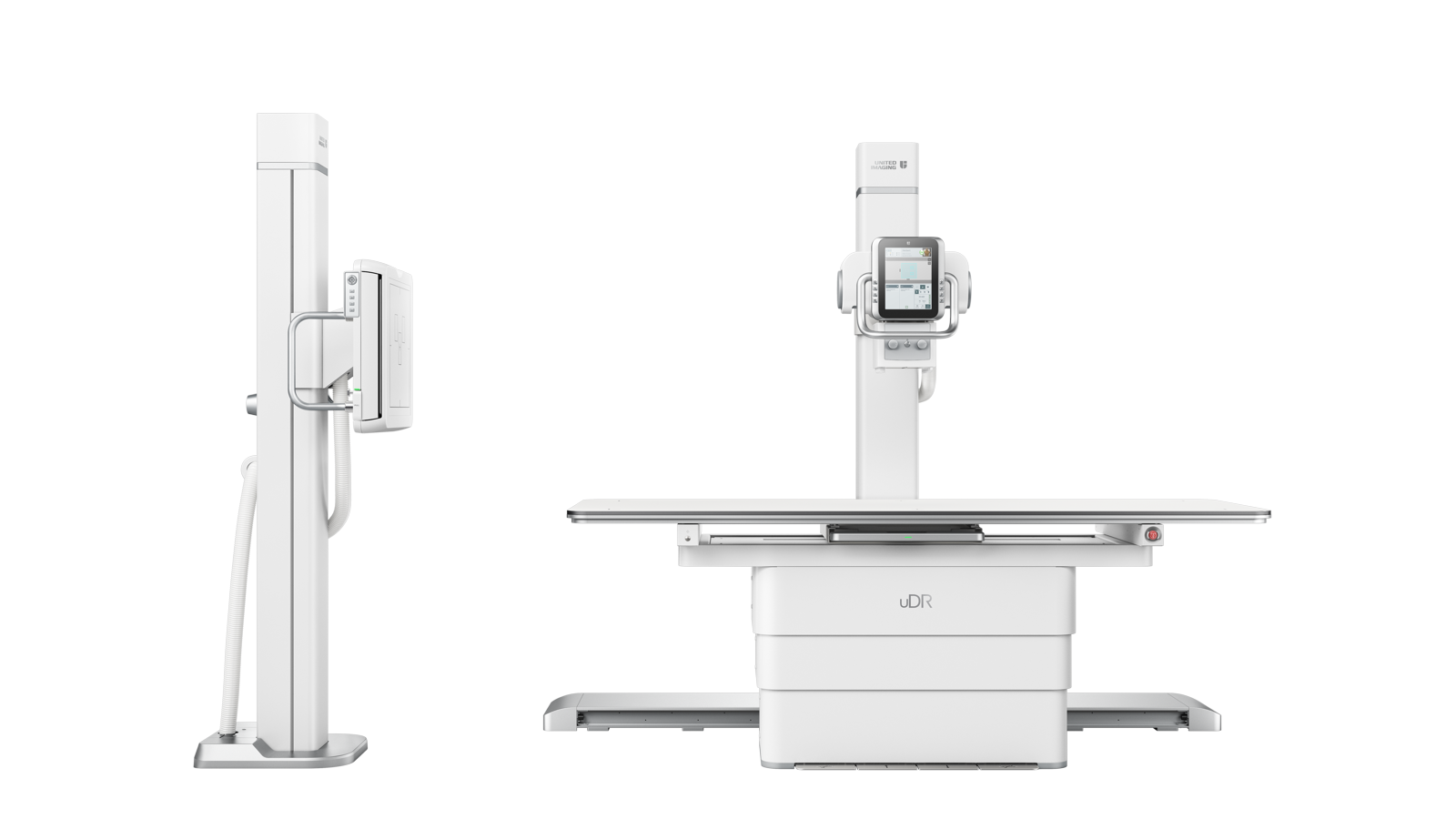

uDR Arria is United Imaging's AI empowered floor mounted X-ray system that is designed for ease. This system integrates United Imaging's uAI® Vision Cameras to create a 3D model of the patient that enables dynamic adjustments to the system and to the X-ray parameters. It embeds AI QC technology throughout the entire X-ray procedure, offering real-time image QC and retrospective analysis to eliminate repeat exams and unnecessary patient radiation dose.
AI-Enabled Quality Assurance
-
Detector type : Wireless Flat Panel Detector
Scintillator: Cesium Iodide (CSI)
Pixel Size: 100μm
Detector Size: 17"X17"/14"X17"
-
Tube type: Rotating Anode X-ray Tube
Anode target material: Rhenium-Tungsten faced Molybdenum
Focal spot size: 0.6mm / 1.2mm
Anode target angle: 12°
-
Max. Output Power: 65kW / 80kW
Range of kV: 40kV-150kV
Range of mA: 10~800mA (65kW)
10~1000mA (80kW)
