An Entirely New Species

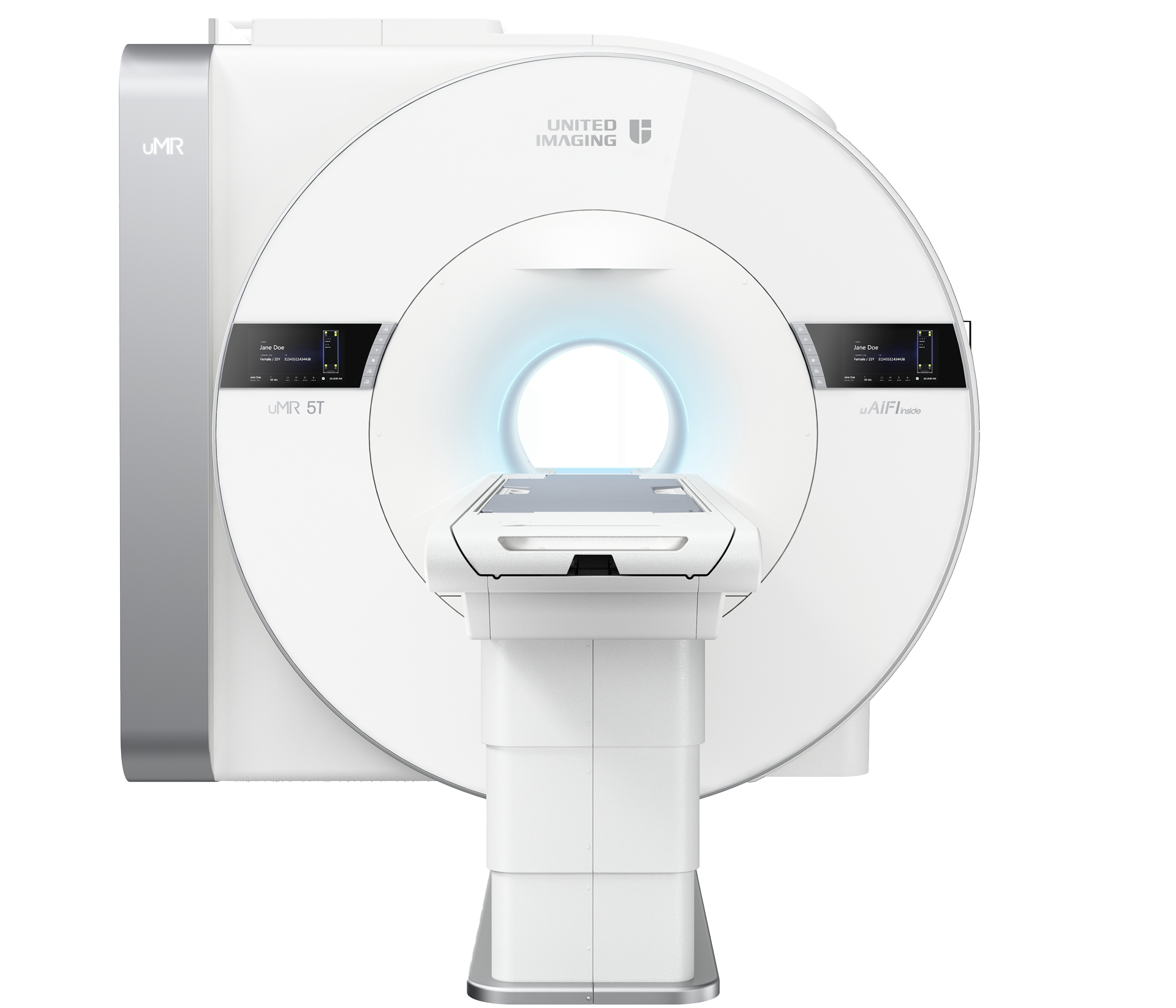

World's First Whole-body UHF 5T MR

uMR Jupiter

The 5T magnetic resonance demonstrates elite hardware performance, specifically in four key components: magnet, radiofrequency, gradient, and the gradient power amplifier. The ultra-high field strength of a 5 Tesla magnet significantly improves SNR and resolution. In terms of radiofrequency, the 8-ch parallel transmit coil ensures a uniform and stable radiofrequency field, especially for body imaging. The gradient power amplifier, with a 3.5MW output power, provides abundant energy for the gradient coil.

Unleashes a New Era with Innovative Hardware

  • Field Strength: 5 Tesla

    Bore Size: 60 cm

    Maximum FOV: 50 cm(X and Y directions)

  • Maximum Gradient Amplitude: 120 mT/m

    Maximum Slew Rate: 200 T/m/s

    Shimming Type: Active shimming

  • Number of Parallel Transmit Coil Channels: 8

    Number of Independent Receiver Channels: 96

  • Scanning Room Area(Minimum): 25.12 m2

    Control Room Area(Minimum): 12 m2
