Powered by uExcel PlatformNew-Generation Ultra-High Resolution Digital PET/CT

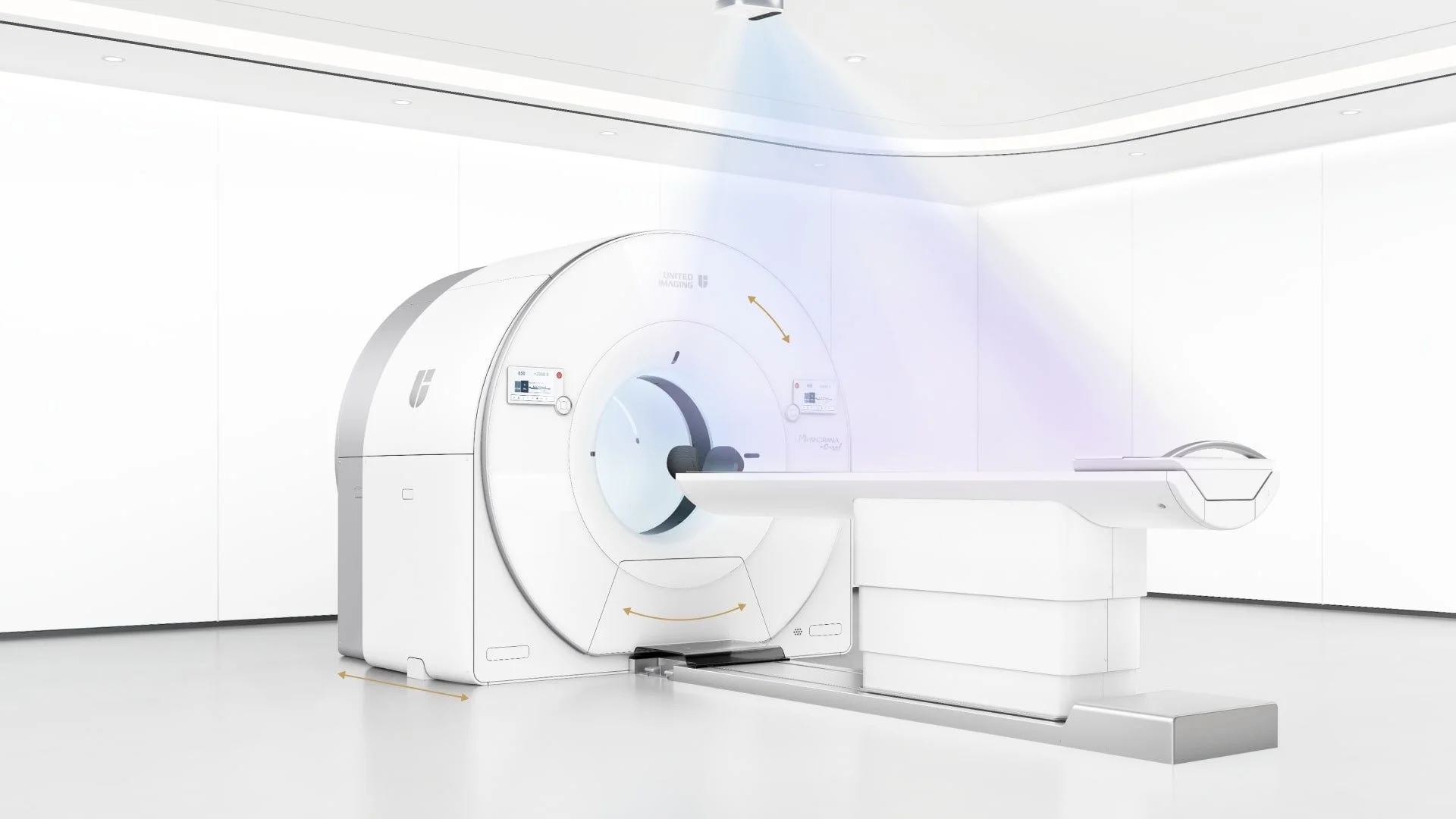

uMI Panorama
Embrace a brand-new PET/CT imaging era of enhanced confidence in decision making, streamlined workflows, and expanded research opportunities with an ultra-high resolution digital PET/CT: uMI Panorama, powered by uExcel technology platform.
uMI Panorama is clearly magnificent in every direction with the finest National Electrical Manufactures Association (NEMA) PET spatial resolution, truly-fast 189-picosecond (ps) time of flight (TOF), scalable axial field of view (AFOV), the 76-cm super-wide bore and 318-kg (700-lb) table weight capacity that accommodates patients of all sizes.1 By leveraging the AI-powered features on the uExcel platform, it also boosts your daily work efficiency significantly and opens up new possibilities for your exploration.
Breaking Barriers in Every Direction
-
Aperture: 76 cm (30 inch)
Weight Capacity: Up to 318 kg (700 lb)
Cooling Method: Water Cooling
System Control: DDP + CPAN
Remote Audio System: Yes
Light Environment: Starry Night Light
-
Crystal Material: LYSO
Crystal Size: 2.76 mm × 2.76 mm × 18.1 mm
Spatial Resolution @1 cm: 2.9 mm
Spatial Resolution @10 cm: 3.2 mm

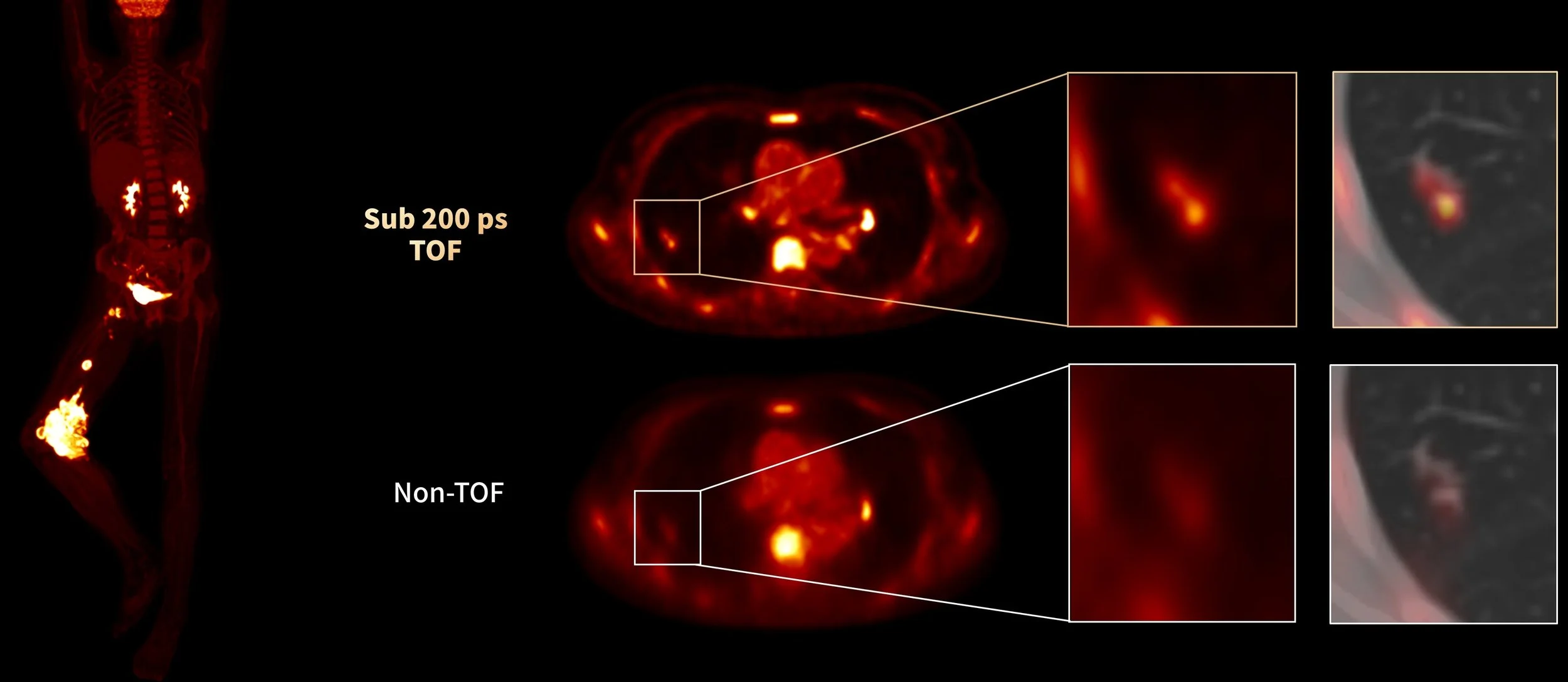

TOF: 189 ps
Scalable AFOV2: 28 cm, 35 cm, etc.
Effective Sensitivity @ 20 cm phantom3: 97 cps/kBq, 148 cps/kBq
Effective Sensitivity @ 35 cm phantom4: 170.4 cps/kBq, 259.3 cps/kBq
Effective Peak Noise Equivalent Count Rate (P-NECR) @ 20 cm phantom3: 2,327 kcps, 3,526 kcps
Effective P-NECR @ 35 cm phantom4: 4,059 kcps, 6,150 kcps
-
Axial Coverage: 4 cm
Maximum Rotation Speed: 0.25 s
Number of Detector Rows: 80
Maximum Slices per Rotation: 160
Equivalent Tube Anode Storage Capacity: 34 MHU
kV Settings: 60 kV, 70 kV, 80 kV, 100 kV, 120 kV, 140 kV
Range of Tube Current: 10-833 mA (with 1 mA increment)
