Seamless Workflow for Fast Screening

Low Dose 3D Mammography System

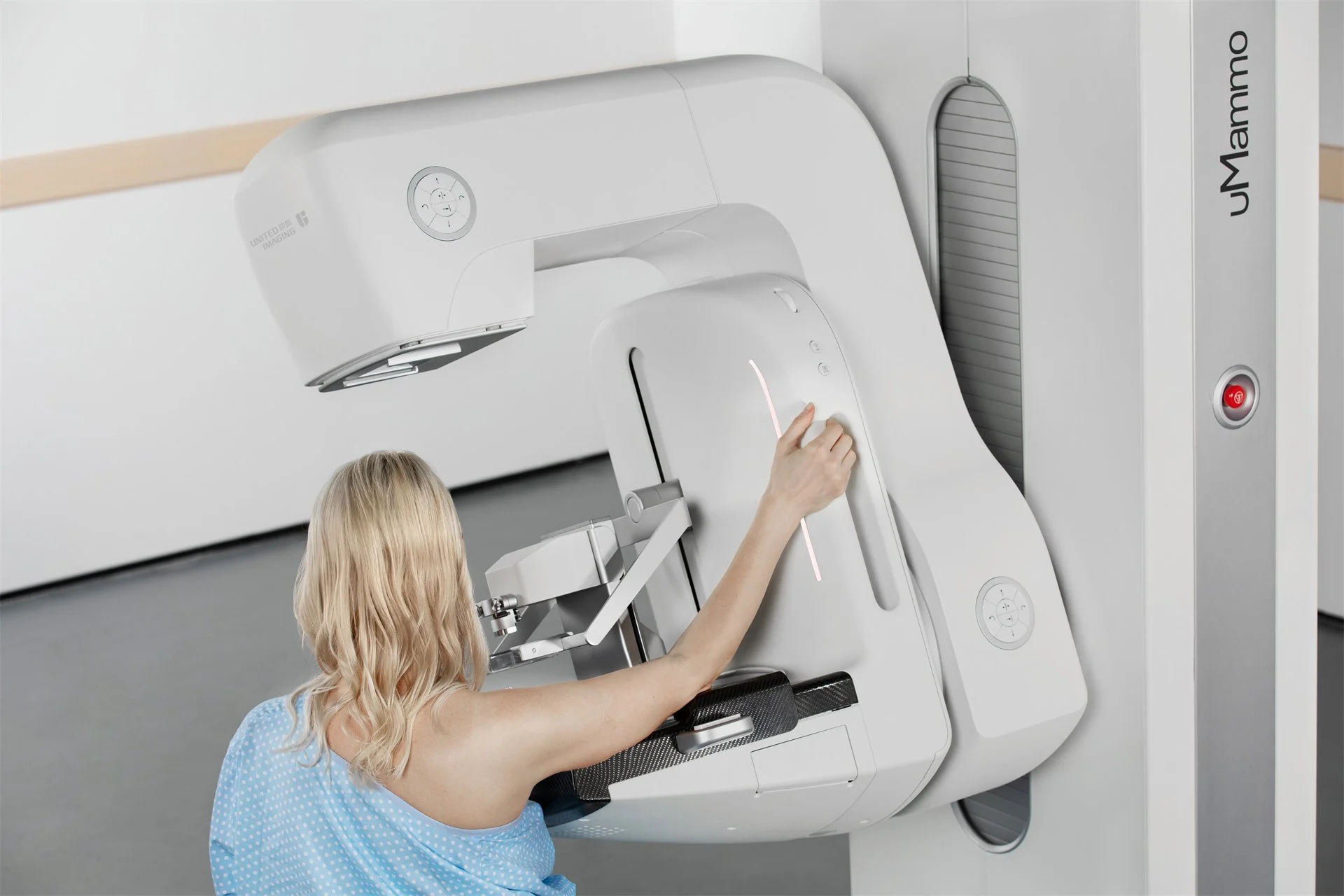

uMammo 890i

At the heart of our mission is the unwavering commitment to enhancing the survival chances of women battling breast cancer. Our vision is to make breast cancer preventable, treatable, and curable through precise early screening. uMammo 890i incorporates the advanced technology and the state-of-the-art design. Together with you, we are pushing the boundary of breast imaging.

Pushing the Boundary of Breast Imaging

  • Tomosynthesis angular range: 40° wide angle (+/-20°) and 15° narrow angle (+/-7.5°)

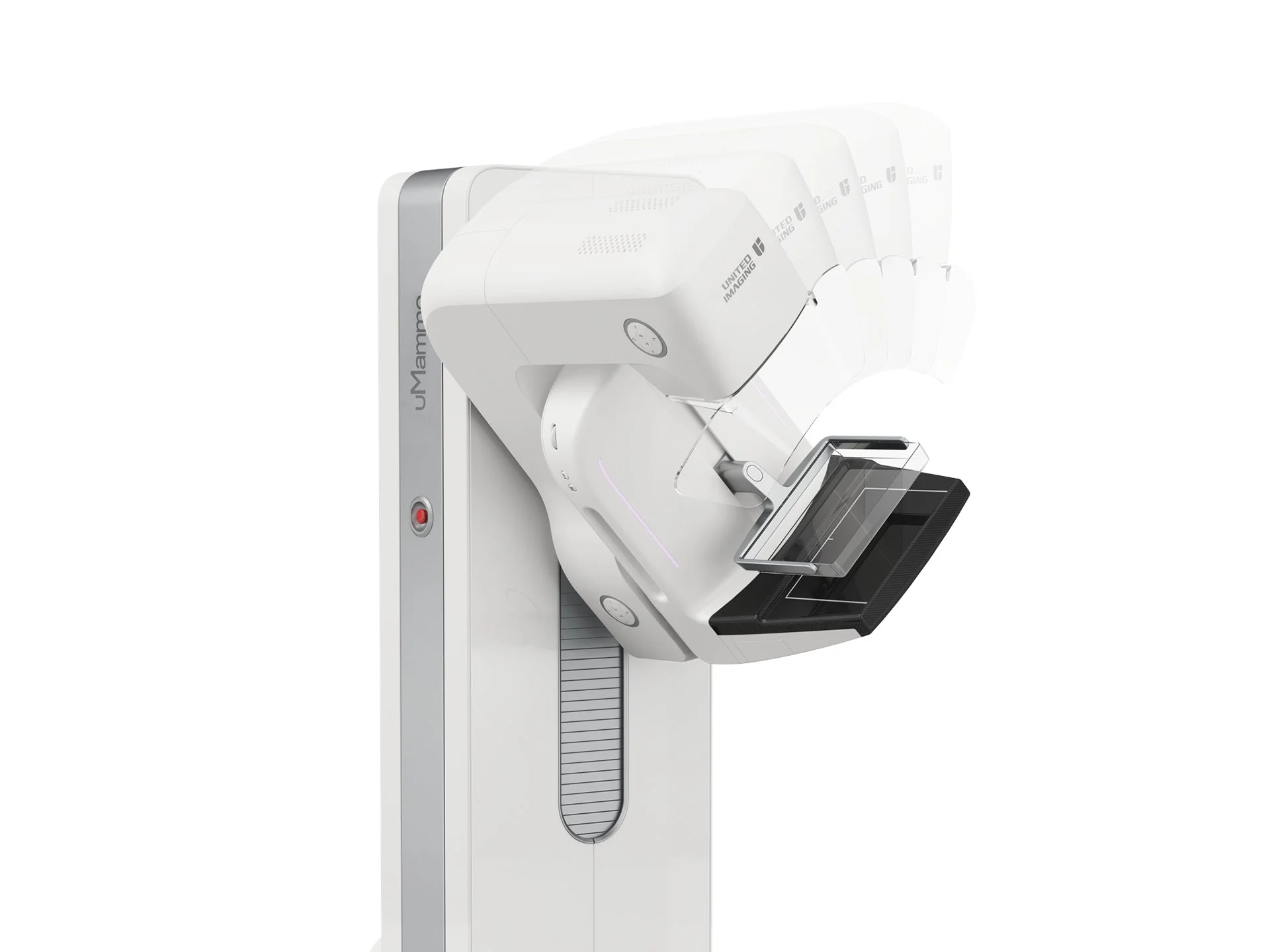

  • Tube motion: Continuous tomosynthesis sweep

  • Tomosynthesis projections: 21 low-dose projections (40° ); 15 low-dose projections (15°)

  • Slice thickness: 1 mm

  • Detector: High definition CMOS detector

  • Spatial resolution: 10.1 lp /mm

  • Pixel size: 49.5μm

  • Source to image receptor distance: 70 cm
