Focus on What Matters

Intelligent Angiography System

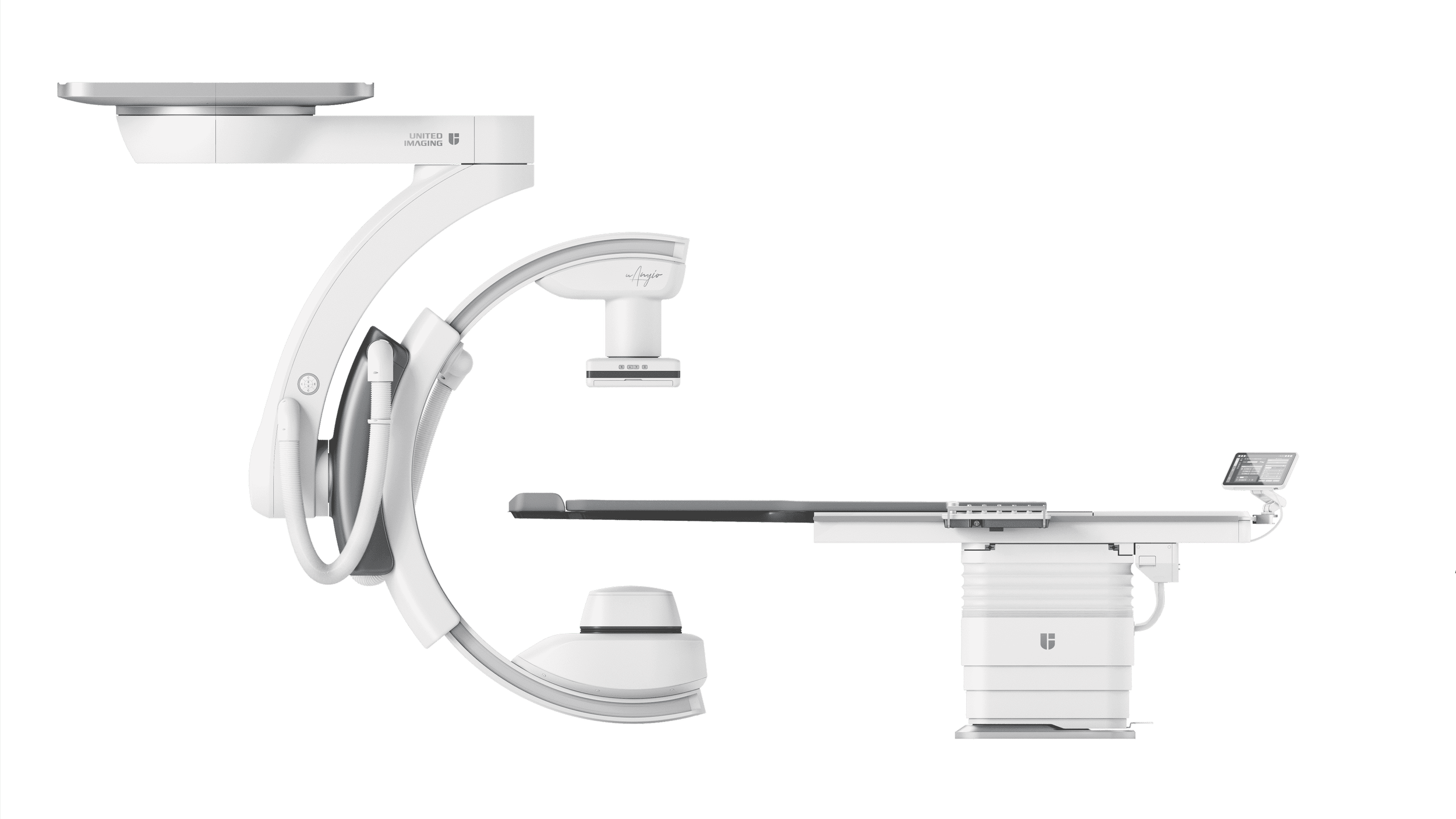

uAngio AVIVA CX

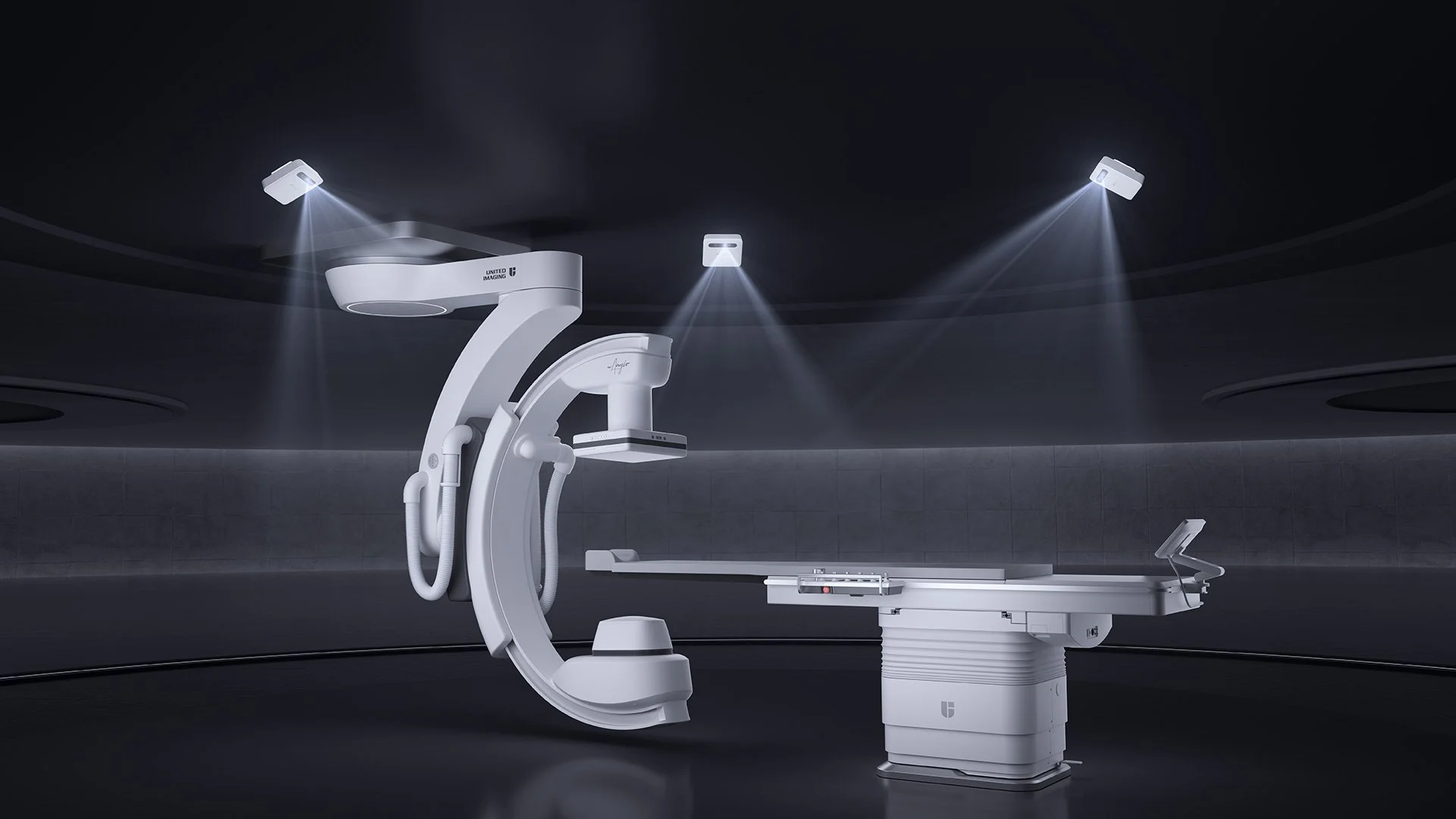

Introducing United Imaging's uAngio AVIVA CX, intelligent ceiling-mounted angiography system designed to be more than just a tool—it's your smart assistant in the operation room. With intelligent voice-control, vision, robotics, and imaging, uAngio AVIVA CX hears, sees, moves with exceptional flexibility, and thinks' revolutionizing how interventional procedures are performed. This groundbreaking innovation paves the way for a new paradigm in future procedures.

Intuitively Bionic

  • Robotic C-arm: 8 Axis

    Motion Coverage: Up to 6.35m*2.36m

    Z Rotation: ±135°

    RAO/LAO: 180°/150°

    Transverse Movement: Max. 2360mm

    Longitudinal Movement: Max. 6350mm

  • Detector Size: 30*40cm

    Pixel Size: ≤154 μm

    Spatial Resolution: ≥3.25 lp/mm

    Depth: 16bit

    DQE: 77% RQA5 0lp/mm@2uGy (Typical)

  • Focus: 0.4/0.6/1.0 mm

    Power: 28/48/100kW

    Max.anode Heat Storage: 3.8MHu

    Max.assembly Heat Storage: 6.69MHu

    Max. anode Heat Dissipation: 5500W

  • Scanning Room Area(Minimum): 25.12 m2

    Control Room Area(Minimum): 12 m2
